Product Details:
Payment & Shipping Terms:
|
| Keywords: | WHB-500W Thrust Washers | Material: | Copper |
|---|---|---|---|
| Apply For: | Engineering Machinery | Size: | Customizable |
| Feature: | Good Load Capacity | Advantage: | Long Operating Life |
| High Light: | thrust ball bearing,axial load bearing |
||

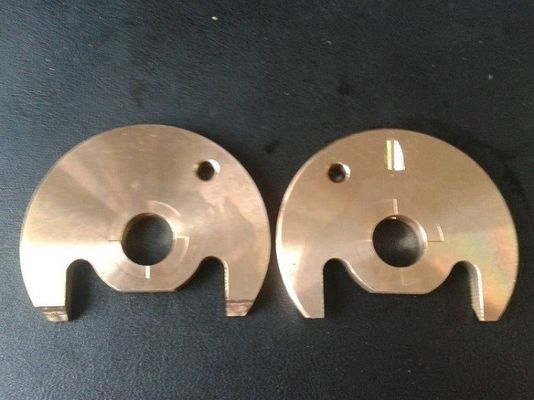

Coppery Non-Standard Series Of Thrust Washer Bearing Maintenance-Free
1. Product Description
Coppery Non-Standard Series Of Thrust Washer Bearing Maintenance-Free based on CuZn25Al6Fe3Mn3 material,this plain bearing has the advantages of the metal matrix and the special lubricating material,it breaks through the limitaion of the oil film lubrication.Using proper material in different parts when designing in order to enhance the mechanical properties and prolong the service life of the bearing.
2. Specification
| Basic material | CuZn25Al6Fe3Mn3 | Friction | Oil Lubrication | 0.02μ |
| Density | 8.0g/cm³ | Dry Friction | 0.15 μ | |
| Heat-conducting Coefficient | 40-50 W(/m.k) | Tensility | ≥ 5 % | |
| Tensile Strength | >750 N/mm2 | Working Temperature Limits | -40℃~+300℃ | |
| Anti-compact Tenacity | >450 KJ/m3 | Max Load Pressure | 100 N/mm2 | |
| Hardness | >210 HB | Max Linear Velocity | 0.3m/s | |
| Flexibility Coefficient | 130-160 KN/mm2 | Max PV Value | 200 N/mm2/min | |
3. Application
Coppery Non-Standard Series Of Thrust Washers Bearing Maintenance-Free are widely applied in mining machinery,engineering machinery,agriculture machinery ,
4. Advantages
That coppery series thrust washer bearing with excellent resisitance against chemical attacks and low friction.The precision machining of copper alloy plain bearing provides a simple and economical way of bearing application, with high bearing capacity, good corrosion resistance and arbitrary size processing.At the same time, WHB products can provide different copper alloys according to different operating conditions, and produce different forms according to requirements. It has higher dimensional accuracy than rolled copper bearings.
