Product Details:
Payment & Shipping Terms:
|
| Keywords: | Self-Lubricating Plastic | Material: | Engineering Plastic |
|---|---|---|---|
| Apply For: | Packing Machinery | Size: | Customizable |
| Feature: | Low Noise | Advantage: | Anti-corrosion |
| High Light: | plastic flange bearing,plastic sleeve bearing |
||

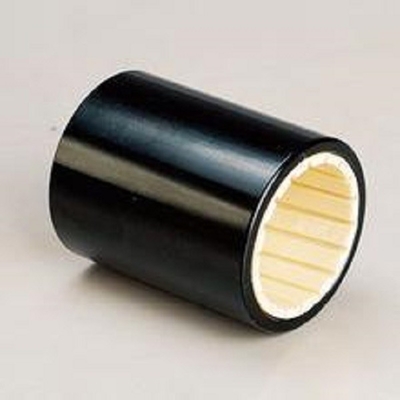

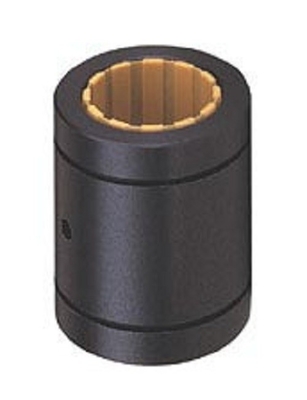

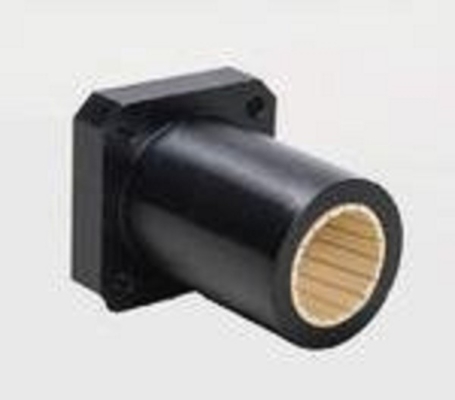

Self-Lubricating Plastic Plain Linear Bearings Closed Flanged Maintenance-Free
1. Product Description
Self-Lubricating Plastic Plain Linear Bearings Closed Flanged Maintenance-Free based on high-performance engineering plastics which is a general purpose the strongest plastic bearings, Low noise operation is suitable for continously application under the critical dusty environment. It is washable by the clean detergent of the food machine. There is no critical requirement about the shaft hardness or the mounting holes of the housing.
2. Specification
| Velocity | Max rotating velocity | 1.0m/s | PVvalue limit | Oil lubrication | 12 N/mm2.m/s |
|
Max oscillating
velocity
|
0.7m/s | Dry friction | 0.4 N/mm.m/s |
||
| Max linear velocity | 3.0m/s | Friction coef μ | 0.05~0.15 | ||
| Strength | Tensile strength | 90MPa | Working temperature | -50℃~+100℃ | |
| Compressive strength | 100MPa | Thermal conductivity | 0.25W/mk | ||
| Coefficient of linearexpansion |
9K-1*10-5 |
Density | 1.48g/cm³ | ||
3. Application
Self-Lubricating Plastic Plain Linear Bearings Closed Flanged Maintenance-Free are widely used in packing machinery,printing machinery,agriculture machinery etc.
4. Advantages
The Plastic Plain Linear Bearing is closed design with low cost, it can bear more load than metal bearing,maintenance-free and low noise,unaffeced by dirt and dust. Suitable for long-time running in dusty environments and havs good Corrosion resistance.This series linear sliding bearings are normally used in the food packing machine guiding system so it is easily access to the cleaning solutions. Years of application experience proves the bearings are corrosion resistant to most kinds of Alkaline cleaning solutions or could be even immerged into the solutions.
