Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable

Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable

Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable
Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable

Large Image :  Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: WHB
Certification: ISO3547/9001
Model Number: DU

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Export carton, wooden case, wood pallet.
Delivery Time: 7-15work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 6000000pcs per month
Detailed Product Description
Keywords: Straight Self Lubricating Material: Carbon Steel
Apply For: Air Cylinder Size: Customizable
Feature: Easy Installation Advantage: Self-lubricating
High Light:

sintered bronze bearings

,

composite sleeve bearings

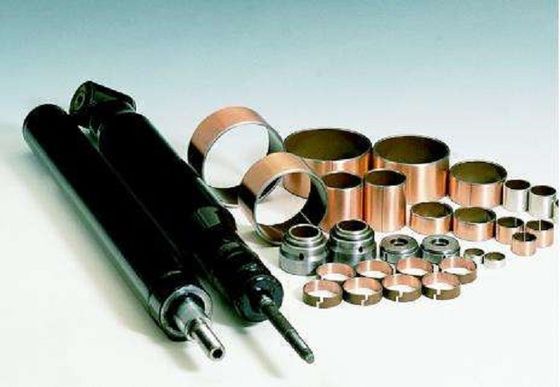

Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable



1. Product Description

    Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable consists of steel back,sintered porous bronze alloy and PTFE & polymer coating.It is lead free and has good pertormance in anti-wear,anti-fatigue,anti-punching. high bonding performance.With excellent tribological properties, this bushing maximizes the strength, dimensional stability, and other properties of the metal.WHB company will try to give customers the best quality,price and service!



2. Specification



Load capacity Static load 200
N/mm2
PVvalue limit Oil lubrication 40
N/mm2.m/s
Dymamic load 140
N/mm2
Dry friction 1.8
N/mm2.m/s
Oscillating 60
N/mm2
Friction coef μ 0.02~0.30
Speed limit Oil lubrication 5m/s Working temperature -150℃~+280℃
Dry friction 2.5m/s Thermal conductivity 42 W/mk
Coefficient of linearexpansion 11
10 -6/K




3. Application

    Straight Self Lubricating Bearing For Oil Cylinder Carbon Steel Material Customizable are widely used in  pump,oil cylinder ,air cylinder,robot etc.



4. Advantages

    This type of self lubricating bearing has the characteristics of low noise and self-lubrication.Meanwhile it can protect the mating surface from wearing. Low friction coefficient and excellent wear resistance under dry conditions, good performance under high load, with excellent anti-dislocation, low friction coefficient, eliminate the "stick slip" phenomenon, the bushing in a wide range of operating temperature performance.
