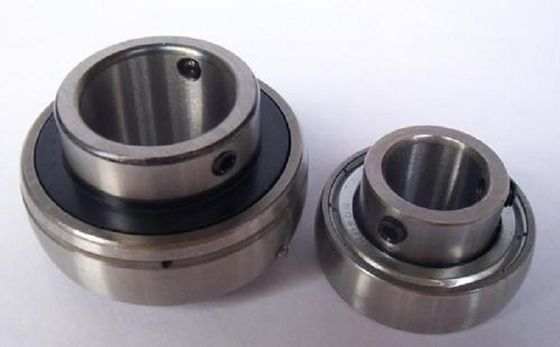

Insert Bearing For Agriculture Machinery With Diverse Structural Forms
1. Product Description
Insert Bearing For Agriculture Machinery With Diverse Structural Forms is actually a kind of variation of deep groove ball bearing, it can be designed into insert bearing with housing, the characteristic is that its outer ring outer diameter surface is spherical, can be matched into the corresponding concave spherical bearing seat to play the role of center adjustment.The outer spherical bearing is mainly used to bear the combined radial and axial load, which is mainly radial load.Further specification pls contact us.
2. Specification
| Bearing Designation | d | D | B | C | W | rmin | G | ds |
| UC201 | 12 | 47 | 31 | 16 | 29.3 | 0.6 | 4.5 | 1/4-28M6*1 |
| UC206 | 30 | 62 | 38.1 | 19 | 40.8 | 1 | 5 | 1/4-28M6*1 |
| UC210 | 50 | 90 | 51.6 | 23 | 62.2 | 1.1 | 9 | 5/16-24M8*1 |
| UC217 | 85 | 150 | 85.7 | 34 | 107.1 | 2 | 14 | 7/16-20M12*1.5 |
| Bearing Designation | D | H | A | E | B | S | G | W |
| UCP201-8 | 1/2 | 30.16 | 127 | 95.3 | 12.7 | 12.7 | 16.6 | 62.7 |
| UCP206-18 | 11/8 | 42.86 | 165.1 | 120.7 | 47.6 | 16.7 | 18 | 84.1 |
| UCP210-30 | 17/8 | 57.15 | 206.4 | 158.8 | 60.3 | 19.8 | 22.2 | 112.7 |
3. Application
Insert Bearing For Agriculture Machinery With Diverse Structural Forms are preferred for applications requiring simple equipment and parts, such as agricultural machinery, transportation systems or construction machinery etc.
4. Advantages
This Outer spherical bearings It is mainly used to bear radial load mainly radial and axial joint load, generally not suitable to bear axial load alone outer spherical bearing is a bearing unit which combines rolling bearing and bearing bearing.Most of the outer spherical bearings are made of the outer diameter of the sphere, with a spherical bore bearing seat installed together, the structure of a variety of forms, versatility and good interchangeability.At the same time, the bearing design also has a certain degree of centrality, easy to install, with double structure sealing device, can work in the harsh environment.
