Various Size Deep Groove Ball Bearing , Anti Wear Tapered Roller Bearing

Various Size Deep Groove Ball Bearing , Anti Wear Tapered Roller Bearing

Various Size Deep Groove Ball Bearing , Anti Wear Tapered Roller Bearing
Various Size Deep Groove Ball Bearing , Anti Wear Tapered Roller Bearing Various Size Deep Groove Ball Bearing , Anti Wear Tapered Roller Bearing

Large Image :  Various Size Deep Groove Ball Bearing , Anti Wear Tapered Roller Bearing Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: WHB
Certification: ISO9001/TS16949
Model Number: GB

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: Negotiation
Packaging Details: Standard export carton, wooden case, wood pallet.
Delivery Time: 10-20 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 450000pcs per month
Detailed Product Description
Keywords: Metric And Inch Tapered Roller Bearing Material: Bearing Steels
Apply For: Automotive Size: Customizable
Feature: Low Speed Advantage: High Load
High Light:

automotive ball bearings

,

tapered roller bearing

Metric And Inch Tapered Roller Bearing High Load Wide Size Range

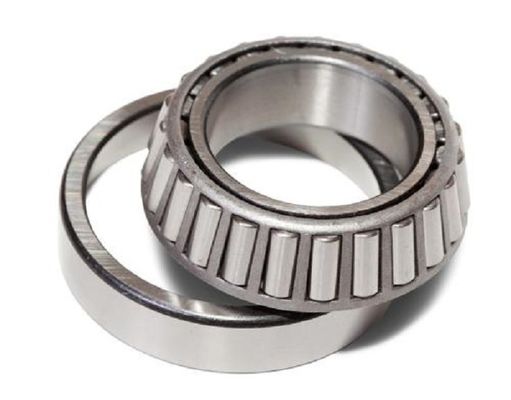

1. Product Description

    Metric And Inch Tapered Roller Bearing High Load Wide Size Range belongs to the separation type bearing, the bearing inner and outer rings have tapered raceway.According to the number of columns, the bearings are divided into single row, double row and four row tapered roller bearings.Single row tapered roller bearings can bear radial load weight and single direction axial load.When the bearing bears the radial load, there will be an axial component, so when another bearing can bear the opposite direction of the axial force to balance.We can provide standard size and non - standard tapered roller bearing according to customer's request



2. Specification



Bearing Type d
(mm)
D
(mm)
T
(mm)
Cr
(kN)
Cor
(kN)
Grease
(r/min)
Oil
(r/min)
Weight
(kg)
30202 15 35 11 14.9 13.4 12000 16000 0.053
30244 220 400 73 35.50
30340 200 420 80 1120 1450 820 1100 53.5
30352 260 540 114 108.00
32205 25 52 19.25 0.174
30302 15 42 13 22.8 21.5 9000 12000 0.094
30203 17 40 12 20.8 21.8 9000 12000 0.079
30303 17 47 14 28.2 27.2 8500 11000 0.129
32303 17 47 19 31.9 29.9 9400 13000 0.170



3. Application

    Metric And Inch Tapered Roller Bearing High Load Wide Size Range are widely applied in engineering machinery,building machinery,agriculture machinery, automobile,machine tool etc.



4. Advantages

    The series tapered roller bearing main to be used for bearing mainly radial load radial and axial joint load.Compared with angular contact ball bearings, the bearing capacity is large and the limit speed is low.Tapered roller bearings can withstand axial load in one direction and can limit axial displacement of the shaft or housing in one direction.Double-row cylindrical roller bearings have compact structure, strong rigidity, large bearing capacity and small deformation after special load, which are mostly used to support the machine tool spindle.Four-row cylindrical roller bearings can bear large radial load, and are mainly used in rolling mill and other heavy machinery.
