POM Sleeve Gearbox Bushing DIN OILES Standard Lead Free Long Operating Life

POM Sleeve Gearbox Bushing DIN OILES Standard Lead Free Long Operating Life

POM Sleeve Gearbox Bushing DIN OILES Standard Lead Free Long Operating Life
POM Sleeve Gearbox Bushing DIN OILES Standard Lead Free Long Operating Life

Large Image :  POM Sleeve Gearbox Bushing DIN OILES Standard Lead Free Long Operating Life Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: WHB
Certification: ISO3547/ISO9001
Model Number: DX

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: Export carton, wooden case, wood pallet.
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 6000000pcs per month
Detailed Product Description
Keywords: POM Bushes Material: Carbon Steel
Apply For: Gearbox Size: Customizable
Feature: Size Stability Advantage: Long Operating Life
High Light:

carbon steel bearings

,

polymer plain bearings

Gearbox POM Sleeve Bushing Bearing DIN and OILES Standard lead free



1. Product Description

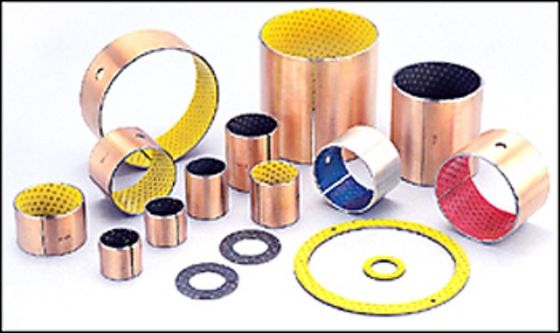

    Gearbox POM Sleeve Bushing Bearing DIN and OILES Standard lead free is a carbon steel based, spherical bronze powder as interlayer and overlaid by a layer of PTFE, the surface of which is provided with oil indentations. Features: the special resin supply with excellent wear resistance and very lower friction, can be keep good work condition even without oil.Recommended for applications involving intermittent operation or boundary lubrication.



2. Specification

Load capacity Static load 250N/mm2 Friction coef μ 0.05~0.25
Dymamic load 140N/mm2 Working temperature -40 ℃~+130℃
Oscillating 70N/mm2 Themal conductivity 13W/mk
PV value limit Oil lubrication 22N/mm2.m/s Speed limit (in oil) 2.5m/s
Dry friction 2.5N/mm2.m/s Coefficient of linearexpansion 12×10-6/K



3. Application

    Gearbox POM Sleeve Bushing Bearing DIN and OILES Standard lead free  is widely used in Gearbox,automotive chassis,mining machinery,metallurgical machinery etc.



4. Advantages

    The product can be used under high load with low speed, rotation, oscillation, and also can be applied in no liquid lubricants environment that switches frequently with load; the part can work with out oil, and will have a long operating life if oil giver; the POM layer can be machined during installing, which does benefit to the mating.
